What should I do if the copper and aluminum pipe butt welding machine is not flat when using the mold?
Release time:2022.05.30
Summary of information:
The copper and aluminum pipe butt welding machine of the pneumatic butt welding machine appears uneven when using the mold. This editor of Xinxing has indeed seen many, especially new molds. Things to pay attention to
Pneumatic butt welding machineCopper and aluminum pipe butt welding machineThe editor of Xinxing has indeed seen a lot of unevenness when using molds, especially new molds. There are many things to pay attention to.

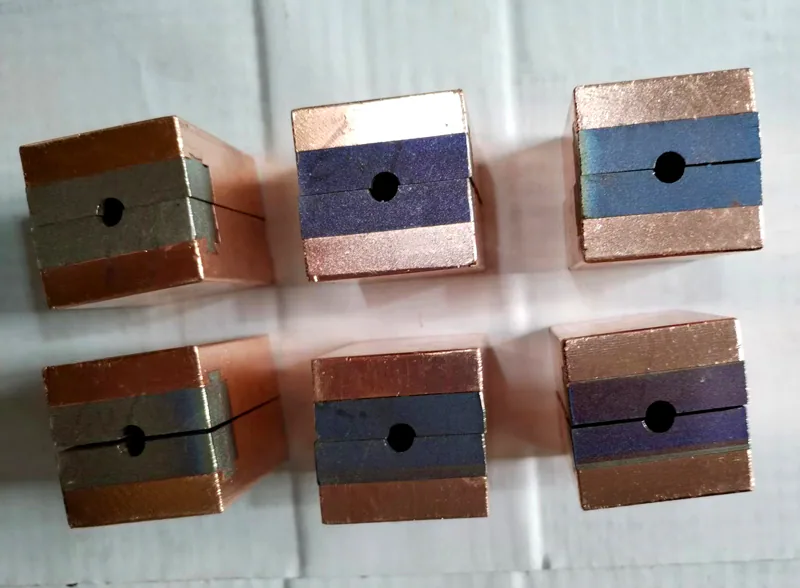

1. The hole diameters of the upper and lower molds must be consistent, and the matching numbers must be selected correctly.
2. There are small rough spots on the edge of the newly cut mold, which are difficult to detect with the naked eye without looking closely. It needs to be sanded up, down, left and right repeatedly with sandpaper to smooth them.
3. Tighten the hexagon socket screws on the electrode holder and adjust it for leveling.
4. Repeatedly tighten and loosen, and check for any unevenness.
5. If you have tried everything else and it is still uneven, you can cut 0.1mm copper tape and press it under the electrode to raise it. If there is still a gap, continue to add copper tape until it is flat.
