Welding processButt and flash butt welding
01 / 02Butt and flash butt welding / SUN Series
Butt & Flash Butt Welding Machines
The SUN series is designed for end-to-end resistance welding of metal wire, rod, tube and profile workpieces using controlled clamping and upset force.
- High-force vertical clamping
- Controlled resistance heating and upset
- Programmed welding sequence
- Self-diagnostics and alarm functions
Final configuration is reviewed against your workpiece, joint and production target.
Typical materialsSteel, Stainless steel + more
Typical workpiecesWire and rod joining, Tube and profile joining + more
ConfigurationApplication-specific clamping jaws, Wire, rod, tube or profile tooling + more
Product Overview
Process definition
Butt and flash butt welding heat opposing workpiece ends by electrical resistance and complete the joint under controlled axial force.
The SUN series is designed for end-to-end resistance welding of metal wire, rod, tube and profile workpieces using controlled clamping and upset force.
Project utilities
- Input power
- 380 V catalog reference
- Rated air
- 0.6 MPa
- Cooling water
- 12 L/min
- Duty cycle
- 20%
Key Capabilities
High-force vertical clamping
Controlled resistance heating and upset
Programmed welding sequence
Self-diagnostics and alarm functions
Application-specific clamping jaws
Water-cooled transformer and conductors
Typical Applications
Application
Wire and rod joining
Application
Tube and profile joining
Application
Ring and frame components
Application
Cable and conductor joining

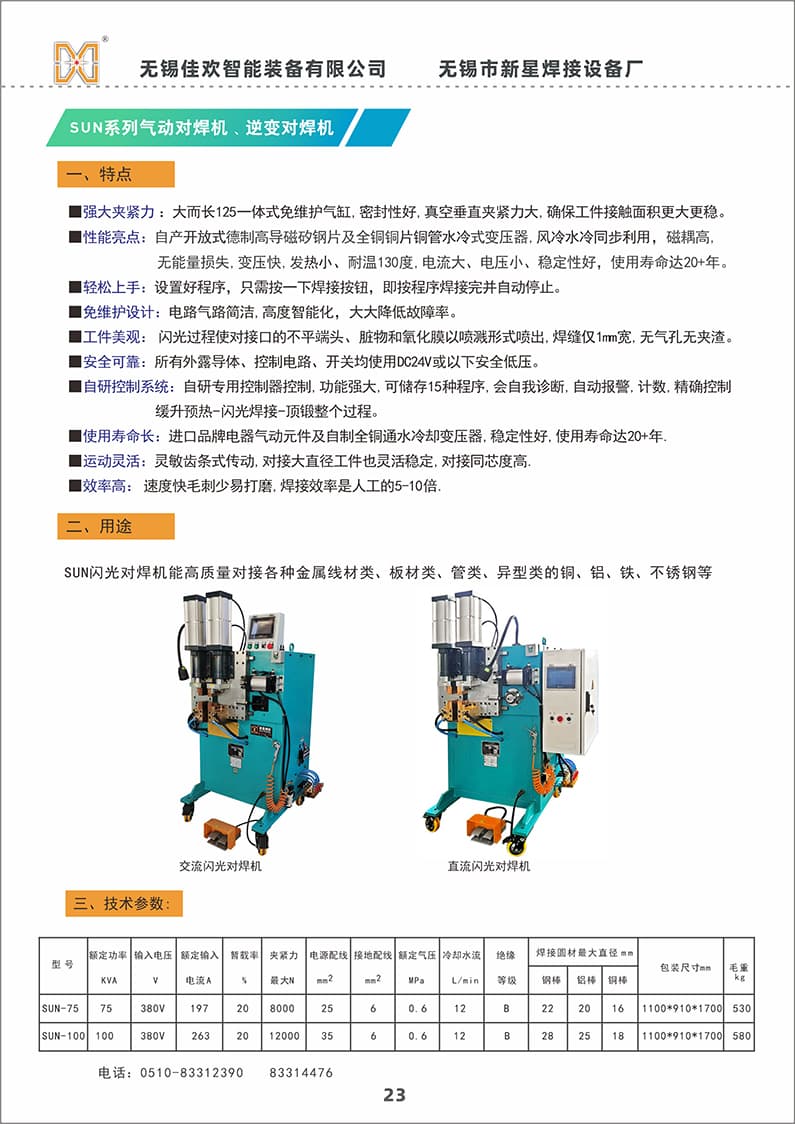

Technical Specifications
| Model | Rated capacitykVA | Rated inputA | Max clamping forceN | Steel rodmm | Aluminum rodmm | Copper rodmm | Weightkg | Dimensionsmm |
|---|---|---|---|---|---|---|---|---|
| SUN-75 | 75 | 197 | 8000 | 22 | 20 | 16 | 530 | 1100 × 910 × 1700 |
| SUN-100 | 100 | 263 | 12000 | 28 | 25 | 18 | 580 | 1100 × 910 × 1700 |
Published values are catalog references. The selected model and configuration are confirmed after reviewing the application.
Configuration Options
Application-specific clamping jaws
Wire, rod, tube or profile tooling
Welding and upset sequence
Flash containment and removal scope
Manual or assisted material handling
Manufacturing & Testing Evidence
Machining
Fabrication and machining support for frames, tooling and project parts.
Assembly
Mechanical, electrical and pneumatic systems assembled around the agreed scope.
Process Testing
Functional checks and process review before equipment handover.
Project Support
Technical coordination for documentation, handover and support requirements.
Product Questions
Share the material, cross-section, end geometry, finished-joint requirement, production rate and available clamping length.
Tube and profile applications can be reviewed when the section can be clamped and heated uniformly.
Jaw geometry is based on the workpiece section, surface condition, gripping length and upset force.
Some combinations may be feasible, but they require application-specific validation and should not be selected from capacity alone.
