Welding processResistance seam welding
01 / 02Resistance seam welding / FB Series
Resistance Seam Welding Machines
The FB series combines resistance welding power with driven wheel electrodes for continuous or indexed seams in sheet-metal components.
- Driven wheel-electrode welding
- Adjustable travel speed
- Controlled electrode force
- Touch interface and process monitoring
Final configuration is reviewed against your workpiece, joint and production target.
Typical materialsLow-carbon steel sheet, Stainless steel sheet + more
Typical workpiecesLongitudinal sheet seams, Continuous sealed joints + more
ConfigurationWheel profile and electrode material, Longitudinal or circumferential tooling + more
Product Overview
Process definition
Resistance seam welding uses rotating wheel electrodes to create overlapping weld nuggets along a controlled path.
The FB series combines resistance welding power with driven wheel electrodes for continuous or indexed seams in sheet-metal components.
Project utilities
- Input power
- 3-phase 380 V
- Rated air
- 0.5 MPa
- Cooling water
- 20 L/min
- Travel speed
- 0–2 m/min
Key Capabilities
Driven wheel-electrode welding
Adjustable travel speed
Controlled electrode force
Touch interface and process monitoring
Water-cooled wheel electrodes
Continuous or indexed seam configurations
Typical Applications
Application
Longitudinal sheet seams
Application
Continuous sealed joints
Application
Rolled or formed sheet components
Application
Application-specific circumferential seams

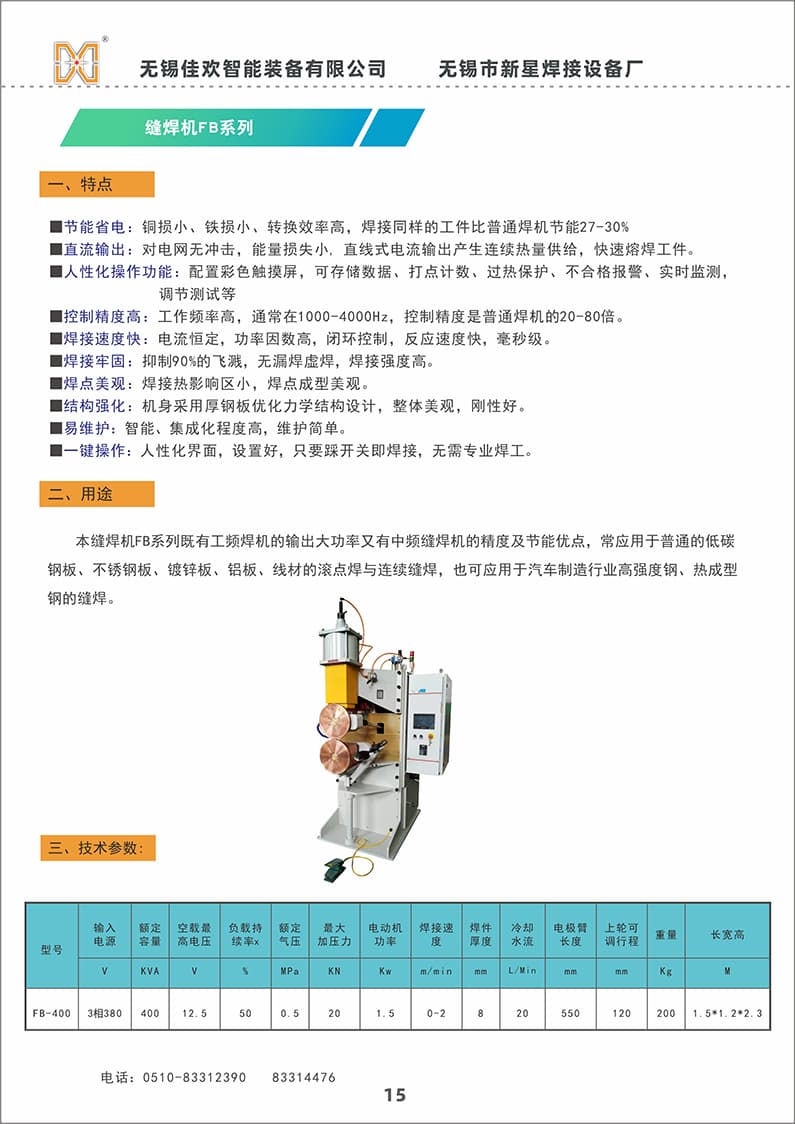

Technical Specifications
| Model | Rated capacitykVA | No-load voltageV | Max forcekN | Welding speedm/min | Wheel diametermm | Throat depthmm | Weightkg | Dimensionsm |
|---|---|---|---|---|---|---|---|---|
| FB-400 | 400 | 12.5 | 20 | 0–2 | 550 | 120 | 200 | 1.5 × 1.2 × 2.3 |
Published values are catalog references. The selected model and configuration are confirmed after reviewing the application.
Configuration Options
Wheel profile and electrode material
Longitudinal or circumferential tooling
Part guide and drive system
Seam-speed program
Cooling-water circuit
Manufacturing & Testing Evidence
Machining
Fabrication and machining support for frames, tooling and project parts.
Assembly
Mechanical, electrical and pneumatic systems assembled around the agreed scope.
Process Testing
Functional checks and process review before equipment handover.
Project Support
Technical coordination for documentation, handover and support requirements.
Product Questions
Provide the material, sheet thickness, seam path, joint overlap, required appearance or sealing criteria, part dimensions and target speed.
Wheel geometry and tooling can be evaluated against the seam path, access and joint requirement.
Circumferential configurations can be reviewed when the workpiece can be supported and driven correctly.
The validation method should be agreed for the application, such as visual inspection, peel testing or leak testing.
