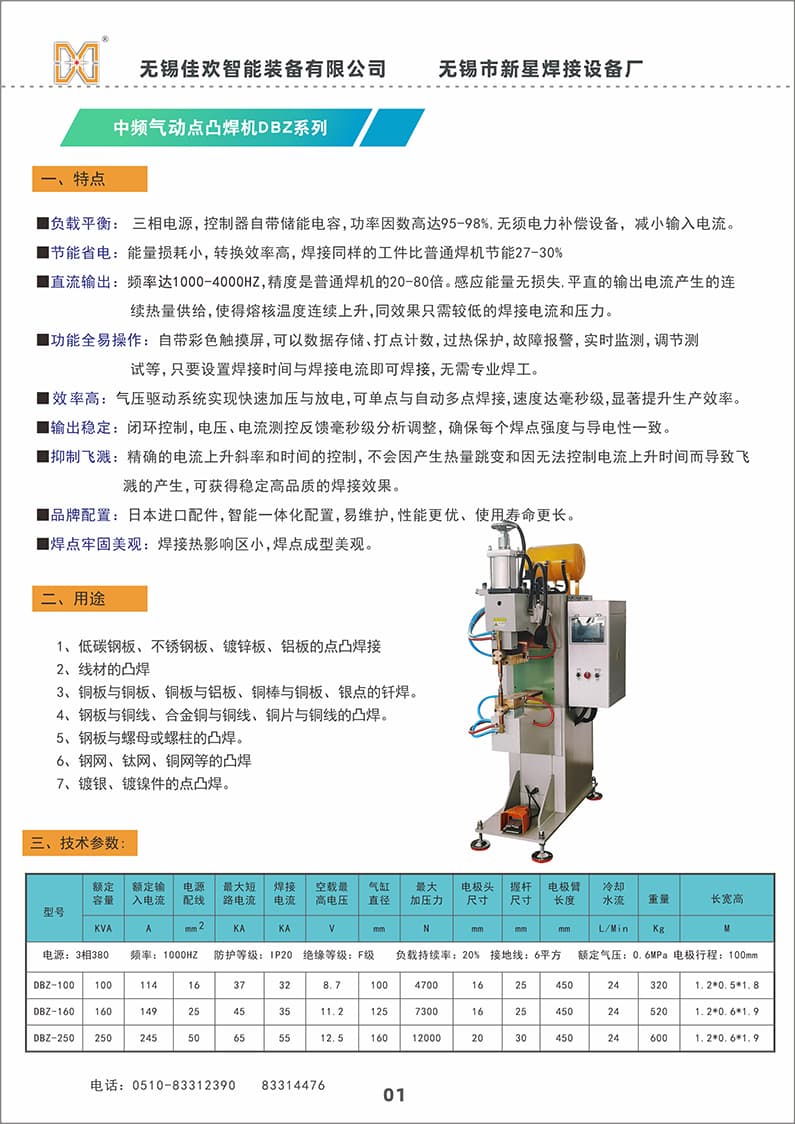

01 / 02MFDC spot and projection welding / DBZ Series
MFDC Spot & Projection Welders
The DBZ series is an MFDC pneumatic resistance welding platform for spot and projection welding. Model selection depends on material, stack thickness, electrode access, required force, cycle rate and available three-phase power.
- DC welding output from a medium-frequency inverter platform
- Closed-loop voltage and current monitoring
- Adjustable current rise profile
- Touch interface with weld counting and data storage
Final configuration is reviewed against your workpiece, joint and production target.
Typical materialsLow-carbon steel sheet, Stainless steel sheet + more
Typical workpiecesSheet-metal spot welds, Projection welding of nuts and studs + more
ConfigurationApplication-specific electrodes, Workpiece fixtures and tooling + more
Product Overview
Process definition
Medium-frequency direct-current resistance welding converts three-phase input power into a controlled DC welding output for repeatable spot and projection joints.
The DBZ series is an MFDC pneumatic resistance welding platform for spot and projection welding. Model selection depends on material, stack thickness, electrode access, required force, cycle rate and available three-phase power.
Project utilities
- Input power
- 3-phase 380 V
- Frequency
- 1000 Hz catalog reference
- Rated air
- 0.6 MPa
- Cooling water
- 24 L/min
Key Capabilities
DC welding output from a medium-frequency inverter platform
Closed-loop voltage and current monitoring
Adjustable current rise profile
Touch interface with weld counting and data storage
Overheat and fault alerts
Pneumatic force system with model-specific cylinder sizing
Typical Applications
Application
Sheet-metal spot welds
Application
Projection welding of nuts and studs
Application
Wire and mesh assemblies
Application
Copper and aluminum joints subject to application review
Technical Specifications
| Model | Rated capacitykVA | Rated inputA | Welding currentkA | Cylindermm | Max forceN | Cooling waterL/min | Weightkg | Dimensionsm |
|---|---|---|---|---|---|---|---|---|
| DBZ-100 | 100 | 114 | 32 | 100 | 4700 | 24 | 320 | 1.2 × 0.5 × 1.8 |
| DBZ-160 | 160 | 149 | 35 | 125 | 7300 | 24 | 520 | 1.2 × 0.6 × 1.9 |
| DBZ-250 | 250 | 245 | 55 | 160 | 12000 | 24 | 600 | 1.2 × 0.6 × 1.9 |
Published values are catalog references. The selected model and configuration are confirmed after reviewing the application.
Configuration Options
Application-specific electrodes
Workpiece fixtures and tooling
Process monitoring configuration
Manual or automated loading integration
Cooling circuit configuration
Destination power review
Manufacturing & Testing Evidence
Machining
Fabrication and machining support for frames, tooling and project parts.
Assembly
Mechanical, electrical and pneumatic systems assembled around the agreed scope.
Process Testing
Functional checks and process review before equipment handover.
Project Support
Technical coordination for documentation, handover and support requirements.
Product Questions
Share the material, stack thickness, joint drawing, weld count, electrode access, target cycle time, available power and destination country.
Selection is based on the required welding current, force, workpiece access and validation target rather than rated capacity alone.
Application-specific electrodes and fixtures can be evaluated after the workpiece drawing or sample is reviewed.
The catalog reference is three-phase 380 V power, 0.6 MPa compressed air and 24 L/min cooling water. Destination requirements must be confirmed.
