Capacitor Discharge Spot Welders
The DR series stores electrical energy in capacitors and releases it through the welding transformer for short-duration resistance spot and projection welding.
- Short-duration stored-energy discharge
- Stable repeatable energy delivery
- Touch interface with weld counting
- Overheat and fault alerts
Final configuration is reviewed against your workpiece, joint and production target.
Typical materialsLow-carbon steel, Stainless steel + more
Typical workpiecesSheet-metal spot welds, Wire and cable components + more
ConfigurationApplication-specific electrode geometry, Fixture and locating system + more

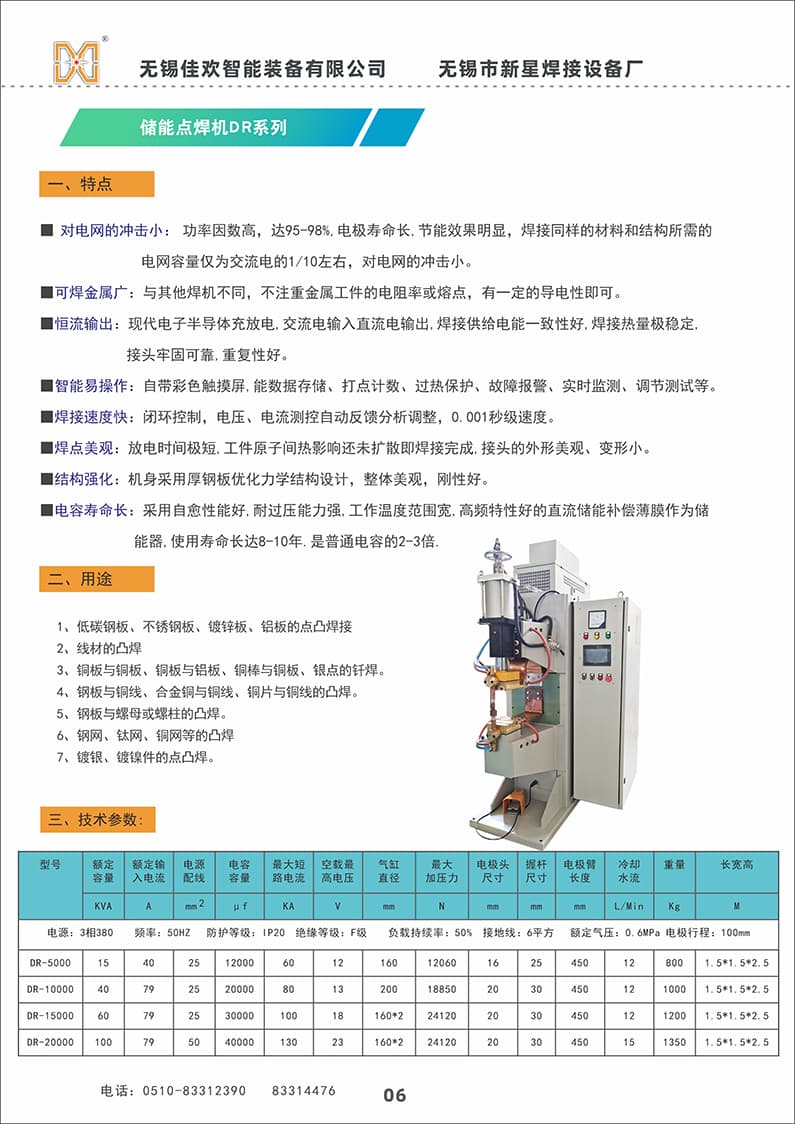

Product Overview
Process definition
Capacitor discharge welding delivers stored electrical energy in a short controlled pulse, reducing the heat-affected time around the joint.
The DR series stores electrical energy in capacitors and releases it through the welding transformer for short-duration resistance spot and projection welding.
Project utilities
- Input power
- 3-phase 380 V
- Frequency
- 50 Hz catalog reference
- Rated air
- 0.6 MPa
- Cooling water
- 12–15 L/min by model
Key Capabilities
Short-duration stored-energy discharge
Stable repeatable energy delivery
Touch interface with weld counting
Overheat and fault alerts
Real-time monitoring functions
Pneumatic electrode force
Typical Applications
Application
Sheet-metal spot welds
Application
Wire and cable components
Application
Projection welding of fasteners
Application
Plated metal parts
Technical Specifications
| Model | Rated capacitykVA | CapacitanceµF | Max short-circuitkA | No-load voltageV | Max forceN | Cooling waterL/min | Weightkg | Dimensionsm |
|---|---|---|---|---|---|---|---|---|
| DR-5000 | 15 | 12000 | 60 | 12 | 12060 | 12 | 800 | 1.5 × 1.5 × 2.5 |
| DR-10000 | 40 | 20000 | 80 | 13 | 18850 | 12 | 1000 | 1.5 × 1.5 × 2.5 |
| DR-15000 | 60 | 30000 | 100 | 18 | 24120 | 12 | 1200 | 1.5 × 1.5 × 2.5 |
| DR-20000 | 100 | 40000 | 130 | 23 | 24120 | 15 | 1350 | 1.5 × 1.5 × 2.5 |
Published values are catalog references. The selected model and configuration are confirmed after reviewing the application.
Configuration Options
Application-specific electrode geometry
Fixture and locating system
Energy and pressure program setup
Cooling circuit configuration
Workpiece handling integration
Manufacturing & Testing Evidence
Machining
Fabrication and machining support for frames, tooling and project parts.
Assembly
Mechanical, electrical and pneumatic systems assembled around the agreed scope.
Process Testing
Functional checks and process review before equipment handover.
Project Support
Technical coordination for documentation, handover and support requirements.
Product Questions
It is considered when a short energy pulse and reduced heat duration are useful for the joint. Suitability still depends on the material, geometry and contact condition.
The catalog lists plated components among typical applications, but the actual coating and surface requirement should be tested.
Stored energy, required current, joint area, electrode force and acceptable marking are reviewed together.
Electrodes and fixtures can be scoped after drawings, photos or samples are reviewed.
