Polymer Diffusion Welding Machines
The DBTH series combines pressure and controlled heating for diffusion joining of layered conductive components, copper foils, braids and busbar connections.
- Simultaneous pressure and controlled heating
- DC heating output
- Touch interface with process data
- Pressure and temperature monitoring
Final configuration is reviewed against your workpiece, joint and production target.
Typical materialsLayered copper foil, Copper braid + more
Typical workpiecesFlexible conductor connections, Busbar assemblies + more
ConfigurationTooling size and graphite block configuration, Heating and pressure program + more
Product Overview
Process definition
Polymer diffusion welding applies controlled pressure and electrical heating across layered conductive materials to form a consolidated connection.
The DBTH series combines pressure and controlled heating for diffusion joining of layered conductive components, copper foils, braids and busbar connections.
Project utilities
- Input power
- 3-phase 380 V
- Frequency
- 1000 Hz catalog reference
- Rated air
- 0.6 MPa
- Cooling water
- 36–72 L/min by model
Key Capabilities
Simultaneous pressure and controlled heating
DC heating output
Touch interface with process data
Pressure and temperature monitoring
Configurable tooling area
Integrated cooling-water circuit
Typical Applications
Application
Flexible conductor connections
Application
Busbar assemblies
Application
New-energy vehicle conductors
Application
Power-equipment connections

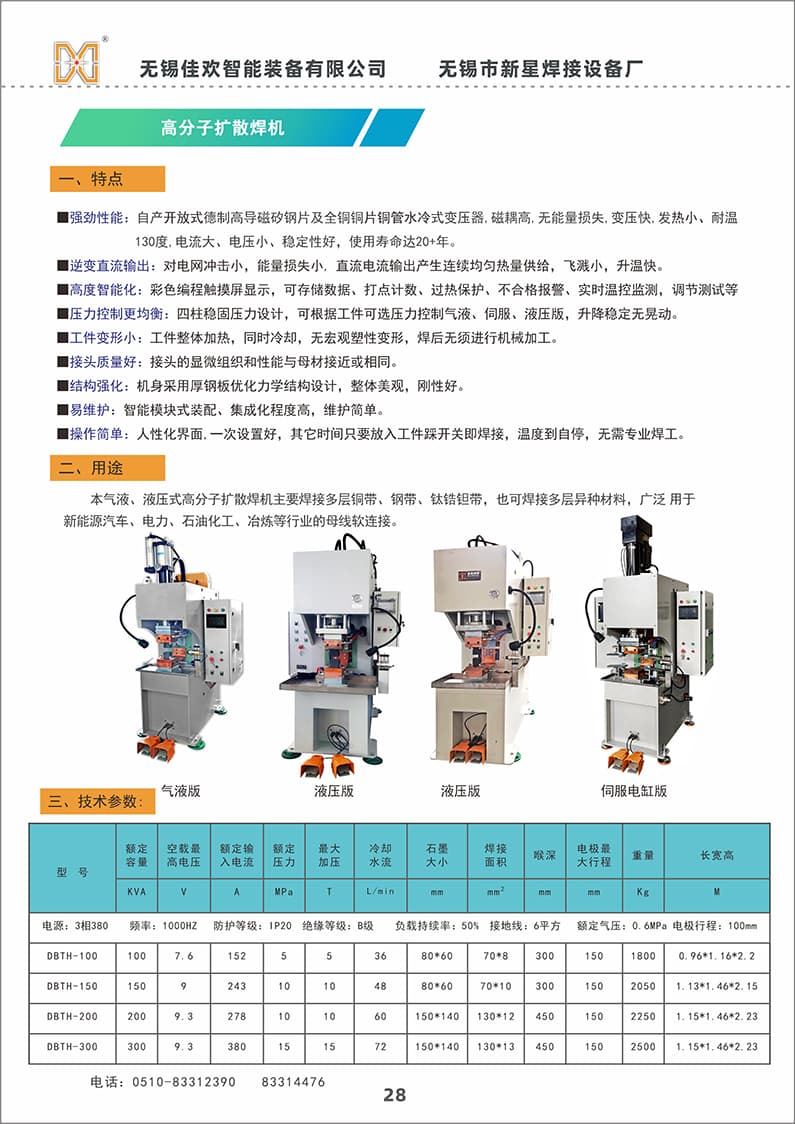

Technical Specifications
| Model | Rated capacitykVA | Rated inputA | Rated pressureMPa | Max forcet | Cooling waterL/min | Reference weld areamm² | Weightkg | Dimensionsm |
|---|---|---|---|---|---|---|---|---|
| DBTH-100 | 100 | 152 | 5 | 5 | 36 | 70 × 8 | 1800 | 0.96 × 1.16 × 2.2 |
| DBTH-150 | 150 | 243 | 10 | 10 | 48 | 70 × 10 | 2050 | 1.13 × 1.46 × 2.15 |
| DBTH-200 | 200 | 278 | 10 | 10 | 60 | 130 × 12 | 2250 | 1.15 × 1.46 × 2.23 |
| DBTH-300 | 300 | 380 | 15 | 15 | 72 | 130 × 13 | 2500 | 1.15 × 1.46 × 2.23 |
Published values are catalog references. The selected model and configuration are confirmed after reviewing the application.
Configuration Options
Tooling size and graphite block configuration
Heating and pressure program
Workpiece locating fixture
Temperature-monitoring scope
Cooling-water circuit
Manual or assisted loading
Manufacturing & Testing Evidence
Machining
Fabrication and machining support for frames, tooling and project parts.
Assembly
Mechanical, electrical and pneumatic systems assembled around the agreed scope.
Process Testing
Functional checks and process review before equipment handover.
Project Support
Technical coordination for documentation, handover and support requirements.
Product Questions
Typical catalog applications include layered copper foil, copper braid, strip and other conductive assemblies. The exact stack must be reviewed.
Selection considers weld area, layer stack, pressure, heating requirement, tooling size and target cycle.
Tooling geometry and effective weld area can be evaluated against the workpiece drawing and layer stack.
Provide material grades, layer thicknesses, finished connection dimensions, insulation constraints, target output and photos or drawings.
